How It Works

The RocketRoute integration enables two-way data exchange between FL3XX and RocketRoute, allowing you to initiate your flight planning in FL3XX and continue building the flight plan directly in RocketRoute—without re-entering data. Once connected, key flight details are automatically pushed from FL3XX to RocketRoute, and you can retrieve the Briefing Pack directly into Dispatch when ready.

Once your RocketRoute credentials are entered, flights created or updated in Dispatch will automatically sync with RocketRoute. Additionally, you can manually trigger a sync at any time by navigating to Dispatch → FPL panel → Upload to RocketRoute.

The following flight data is automatically pushed from FL3XX to RocketRoute:

• Aircraft registration (tail)
• Flight number (as a callsign)
• Scheduled departure dates and times
• Departure and arrival airports
• Type of flight (G, M, S...)
• Flight level - must be inserted in ft/100, example 280, not 28000
• Crew (1 PIC, 1 SIC, cabin attendants; other crew types are displayed as cabin attendants in ForeFlight)
• Number of passengers
• Weight of cargo



Briefing Pack

FL3XX can also download the Briefing Pack directly from ForeFlight using the following steps:

1. Activate the 2-way Communication in RocketRoute settings
2. Make sure the flight has been submitted (and processed) in RocketRoute.

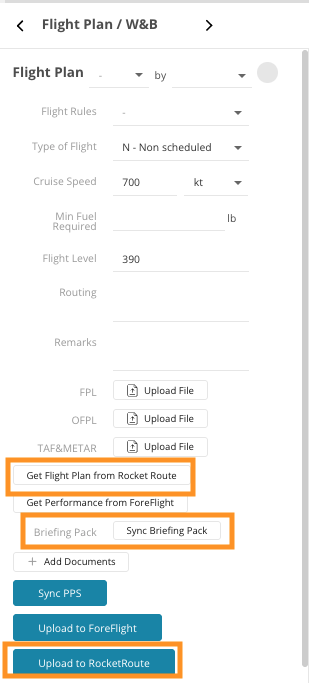

3. Go to the FPL panel in Dispatch and click "Sync Briefing Pack"
4. Documents will be automatically downloaded and attached. You can always update them if necessary by clicking the "Update button".
5. When downloaded, they will be also attached to the Crew Briefing among other attachments.

Data Available from RocketRoute in FL3XX

You retrieve a variety of flight-related data on a per-flight basis:

1. Departure Alternate and Landing Alternate Airports

   • Navigate to Dispatch > Airports to retrieve alternate airport details.

2. Performance Data

   • Access performance metrics in the FPL panel, including:
     • Flight Rules
     • Type of Flight
     • Minimum Fuel Required
     • Flight Level
     • Routing

3. Overflight Countries

   • View overflight country details in the Permits panel.
4. Briefing Pack - in FPL panel

5. Estimated Time of Arrival (ETA)

   • Find the ETA in the MVT panel.

Activation

Contact both RocketRoute (or your usual point of contact), and FL3XX Sales to activate this integration.

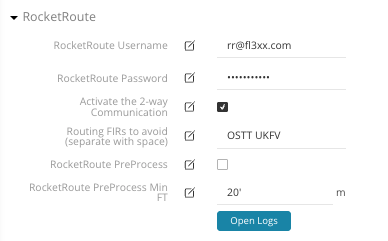

Configuration

1. Once you confirm with RocketRoute, insert
   - RocketRoute Username
   - RocketRoute Password
2. Activate the 2-way Communication
3. You can Open Logs to see the history of syncs
